Mitutoyo Micrometer Caliper 75-100/0.01MM 143-104
Mitutoyo Micrometer Caliper 75-100/0.01MM 143-104
Brand:
MITUTOYO
Model:
143-104
Product Description

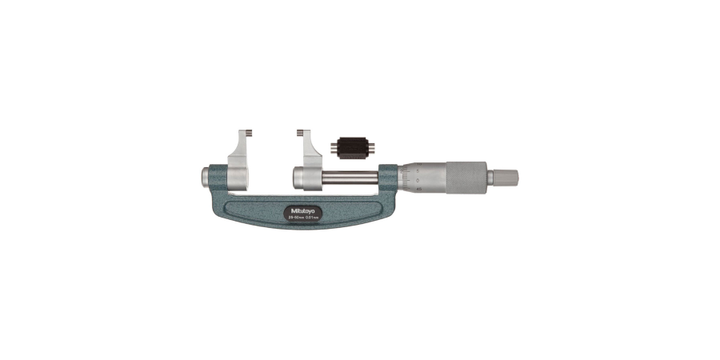

MITUTOYO Micrometer Caliper 75-100/0.01MM 143-104

Features

  • Caliper-type jaws for making outer dimension (OD) measurements
  • Vernier scale in metric units for taking precise outside diameter (OD)measurements
  • Ratchet-stop mechanism helps provide uniform pressurefor precise, repeatable measurements
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Carbide-tippedmeasuring faces provides wear resistance

Specifications

  • Gradient Spacing 0.01 mm
  • Maximum Measurement 75-100mm
  • Measurement Accuracy +/-0.008mm
  • Number of Items 1
  • Part Number143-104
  • Range 75-100mm
  • Resolution 0.01mm Size Name75-100mm
  • Style Name Vernier

Technical Spec

  • Netto Weight: 0.330 KG
  • Unit Demension: 17 X 27 X 3.8 CM
  • Height Demension: 3.800
  • Length Demension: 27.000
  • Width Demension: 16.800
  • Material: Carbide
  • Type: Outside Micrometer
  • Dimension uom: 27.000
US $ 402.01
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
