Mitutoyo Gauge Block Steel 150MM 0 611803-021
Mitutoyo Gauge Block Steel 150MM 0 611803-021
Brand: | MITUTOYO |
Model: | 0 611803-021 |
Product Description

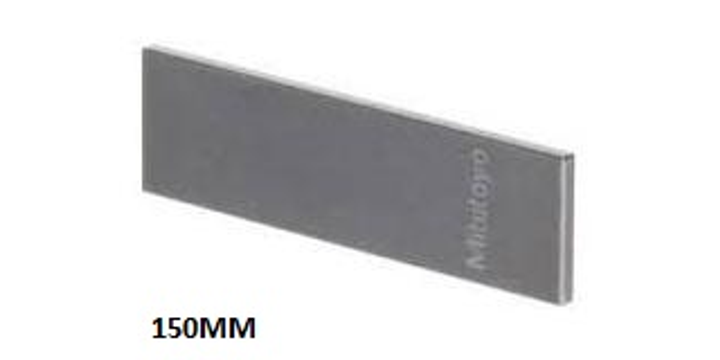

MITUTOYO Gauge Block Steel 150MM 0 611803-021
Benefits
- Precision ground and lapped to a specific thickness.
Features
- Advanced heat treatment technology for Mitutoyo steel blocks achieves excelent abrasion resistance and minimizes any change in length over time.
- Enable user to achive optimum flatness and surface finish needed for gauge block and thus maximize the wringing force.
Specifications
- Hardness: 800 HV
- Flexural strength by 3 point bending: 1960 Mpa
- Young’s Modulus x 10-4 : 20.6 MPa
- Poisson’s ratio: 0.3
- Specific gravity: 7.8
- Thermal conductivity: 54.4 W/m. k
Technical Spec
- Netto Weight: 0.368 KG
- Unit Demension: 150 X 9 X 35 MM
- Height Demension: 6.300
- Length Demension: 28.300
- Width Demension: 10.300
- Material: Steel
- Type: Gauge Block Steel
- Lead Time: 130
- Dimension uom: 28.300
US $ 489.90
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
