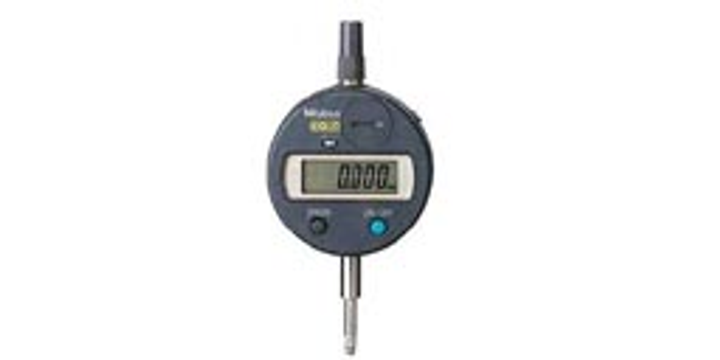

Mitutoyo Abs Dig INDICATOR0.5INC/.01MMMM 543-782B
Product Description
MITUTOYO Abs Dig INDICATOR0.5INC/.01MMMM 543-782B
Benefits
- Cost-effective oriented design ID-SX indicators use abutton-typebattery (SR44) and come with the minimum of functionality for ease ofuse.
- There is a choice of models in the lineup allowingselection of 0.01 MM, 0.001 MM o r INC-based measurement resolutions.
- IP53dust/water protection level The models listed below also provide IP53 dust/water protection level specifications: 543-794/94B/95/95B/96/96B
- ABS (absolute)sensorThese Digimatic indicators employ Mitutoyo’s propriet ary ABS(absolute)sensor, which makes it possible to restore the origin point even if the power is turned off.
- Thi s eliminates the need to performoriginrestoration each time the power is turned on.
- Further more, this sensor ensu res that over speed errors do not occur, which improves reliability. < li>Long battery life One button battery (SR44) prov ides approximately 20,000 hours of continuous use for.0005 in/0.01MM resolution models.
Features
- IP42, SPC0005INC/0.01MM X.5INC/12.7MM IDS 8MM stem
- IndicatorID-S1012MXB,
- SPC0005INC/0.01MM X.5INC/12.7MM IDS 8MM
- Employing the ABSOLUTE linear
- Absolute Position
Specifications
- Type: Standard
- Back Type: Flat Back
- Country of Manufacture: Japan
- Manufacturer: Mitutoyo
- Model: ID-S
- Stem Diamet er (C): 8 MM/.32 INC
- Hysteresis: 0.0008 INC/0.02 MM
- Waterproof: IP42
- SPC Cables: 905338,905409
- Indicator type: Plunger
- Measurement u nits: INC/Metric
- Repeatability of Indicator: 0.0005 INC/0.01 MM
- Measuring Force: 2 N
- Resolution: 0.0005 INC/0.01 MM
- Indicator Range: 0- 0.5 INC/0-12.7 MM< li> Accuracy: 0.0008 INC/0.02 MM
- SPC Output: Yes
- Display Type: Digital
- Back: Flat Bac k
- Battery: SR 44
- Contact Point Thread: M2.5 x 0.45
- Code: 543-782B
- Back: Flat back
- Stem: 8MM
Technical Specifications
- Netto Weight : 0.140 KG
- Unit Demension : 189 X 105.5 X 72 MM
- Height Demension : 7.200
- Length Demension : 18.900
- Width Demension : 10.600
- Material : Stainless Steel
- Type : Digimatic Indicator
- Resolution : 0.01 MM
US $ 174.87
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
