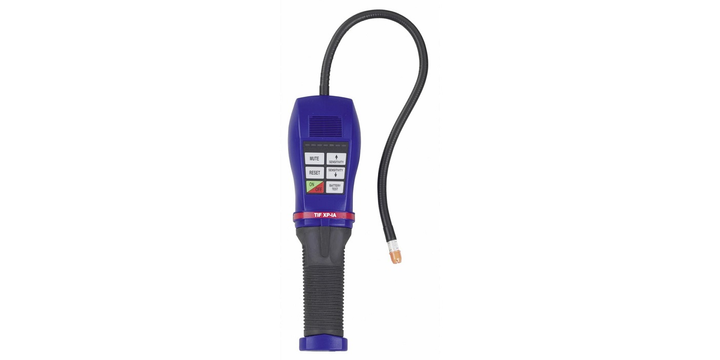

GUT Refrigerant Leak Detector XP-1A Std

Refrigerant Leak Detector XP-1A Std

Benefits

• Electronic leak detector based on Corona Discharge Technology for R12, R22, R134a refrigerants (CFC, HFC, HCFC). Detects leaks of Sulfur Hexafluoride (SF6)used as a dielectric and insulator in: High voltage breakers, Gas insulated substations (GIS), Cables and tubular transmission lines, Electrostatic generators and transformers

Features

• Detects ALL Halogenated refrigerants, in HVAC systems
• Microprocessor controlled circuit with advanced digital signal processing
• Variable frequency audible alarm
• True Mechanical Pump provides Positive airflow through sensing tip
• 14 inch Flexible Stainless Probe with Teflon Liner
• Certified to SAE J1627, UL and CE

Specifications

• Power Source : 3V DC; 2 “C” cell alkaline batteries
• Ultimate Sensitivity : TIFXP-1A - Less than 0.1 oz./yr. (3 g/yr.)
• Sensing Tip Life : Approx. 20 hours
• Operating Range : 30° to 125° F (0° to 52° C)
• Battery Life : TIFXP-1A – Approx. 30 hrs
• Duty Cycle : Continuous • Response Time : Instantaneous
• Reset Time : One second • Warm-up Time : Approx. 2 seconds
• Unit Weight : 1.2 lbs. (560 grams)
• Unit Dimensions : 9" x 2.25" x 2.25" (22.9 cm x 5.7 cm x 5.7 cm)
• Fixed Probe Length : 14" (35.5 cm)

Technical Spec

• Netto Weight 4.500 KG
• Height Dimension 10.000
• Length Dimension 50.000
• Width Dimension 30.000
• Type Refrigerant leak detector
• Lead Time 60
• Dimension uom 50.000
