Gut Gap Bed Lathe C6251X1500
Gut Gap Bed Lathe C6251X1500
Brand:
GUT
Model:
C6251X1500
Product Description

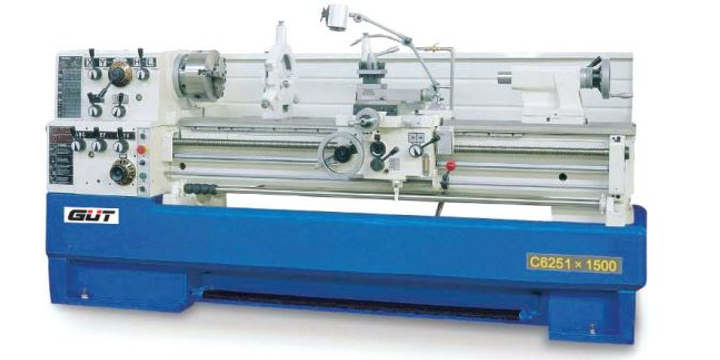

GUT Gap Bed Lathe C6251X1500

Benefits

  • Multinational manufacturer leading machine tools in China.
  • Machine design with quality, reliability, User-friendly and safety.
  • Stable quality products for Industrial machine grade

Features

  • Hypercoustic quenched and accurate grinded bedway and dovetail of saddle
  • One piece cast iron base for well rigidity
  • Hypercoustic quenched and accurate grinded main drive gear
  • Forced lubrication of headstock by oil pump
  • Clutch assembled in apron for avoiding overload
  • automatic feed
  • Convenient to cut thread
  • Three jaw chuck
  • Four jaw chuck
  • Four station tool post
  • Coolant system
  • Worklamp
  • Full length splash guard
  • Face plate
  • Steady rest
  • Follow rest
  • Reduce sleeve
  • Dead centers
  • Foot brake pedal

Specifications

  • Swing over bed : 510 mm
  • Swing over cross slide : 305 mm
  • Width of bed : 350 mm
  • Distance between center : 1500 mm
  • Cutting tool max section : 25 x 25 mm
  • Diameter of spindle bore : 80 mm
  • Range of spindle speeds : 25 - 1600 rpm
  • Metric pitch threads : 0.2 - 14 mm
  • Thread imperial pitches : 2 - 112 TPI
  • Travel of tailstock quill : 180 mm
  • Taper hole of tailstock quill : MT#5
  • Main motor power : 7.5 kW
  • The spesification are subject to modification and improvement without notice

Technical Spec

  • Netto Weight: 2335.000 KG
  • Unit Demension: 284X115X143CM
  • Height Demension: 174.000
  • Length Demension: 290.000
  • Width Demension: 115.000
  • Type: MANUAL LATHE
  • Dimension uom: 290.000
US $ 19,480.91
Lead time of 30 working days required.
Item will be ready to dispatch within the lead time specified.
