Facom High Precision Bevel Protactor 813B.S
Product Description
Facom High Precision Bevel Protactor 813B.S
Benefits
- Tempered stainless steel bevel protractor.
Features
- Anti-reflection mat chrome reading surface.
Specifications
- Measurement range 0 - 360 deg.
- Minimum reading: 5 deg. arc on vernier.
- Dial diameter: 70 MM.
- Dimensions (L. x D. x H.): 315 x 75 x 20 MM.
- Dial pivots with vernier and dial locking screw.
- 2 End rules cut at 45 deg. and 60 deg. includin g: 1 short rule 200 x 16 MM 1 long rule 300 x 16 MM.
- Rule offset by 85 x 16 MM.
- Slide rules locking screw.
- Magnifying glass.
- Cast iron base: 70 x 30 MM.

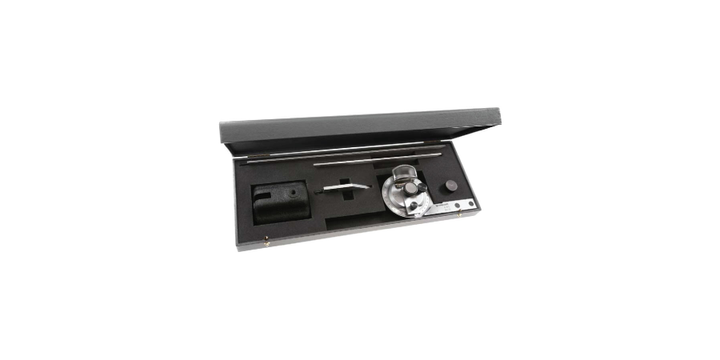

- Supplied in rigid case dimensions (L. x D. x H.): 325 x 125 x 47 MM.Weight: 1.466 KG.
Technical Specifications
- Netto Weight : 1.400 KG
- Unit Demension :33.5 X 12.5 X 4.5 CM
- Type : High Precission Bevel
US $ 655.84
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
/ EA
