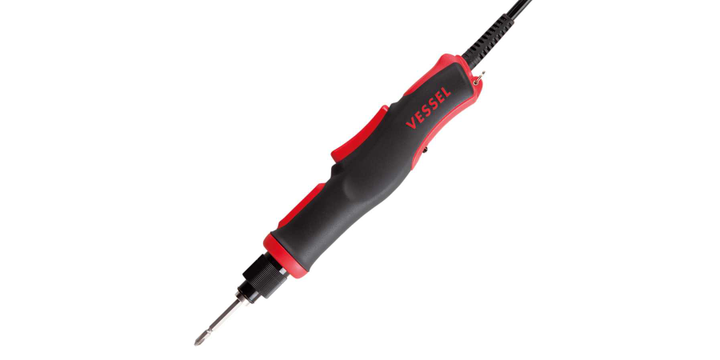

Vessel Screwdriver VE-4000 0.3-1.5 Nm 550004

Screwdriver VE-4000 0.3-1.5 Nm 550004

Benefits

• Slot less/brush less motor is used. Tightening accuracy, efficiency and maintainability are improved.
• Easy to use ergonomic design. Shock absorbing gel pad enables a firm grip.
• Prevents mis-operation of adjustment by a tamper proof sleeve.
• Power cable 2 M integrated type without a connector on the main body.

Features

• Torque adjustment 16 step x 8 scales
• Body material PC + elastomer

Specifications

• Model: VE-4000
• Insertion angle: H5
• Output torque range: 0.3-1.5 Nm
• Applicable small screw: 2.3-4.0 M
• Applicable self-tapping screw: 1.6-2.6 MM
• No-load rotation speedmin-1 : HI 2000/LO No LO setting
• Rating: DC32 V 55 W
• Cable length: 2 M
• Overall Length 250 MM
• EDP No.: 550004

Technical Spec

• Netto Weight 0.700 KG
• Unit Dimension -
• Height Dimension 10.000
• Length Dimension 36.000
• Width Dimension 16.000
• Type SCREWDRIVER
• Dimension uom 36.000
