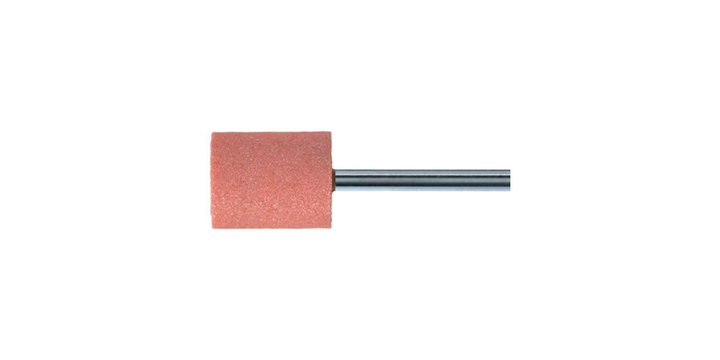

Pferd Mounted Point ZY3240/6 AR46O5V 097748

Mounted Point ZY3240/6 AR46O5V 097748

Benefits

• These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
• Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.

Features

• Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
• Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
• The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
• Application examples :
• Deburring of steel castings.
• Chamfering in preparation for welding.
• Contour a nd edge grinding on forgings.

Specifications

• Grit size : 46
• Shank diameter : 6 mm
• Shank length : 40 mm
• Burrs Diameter : 32 mm
• Burrs Thickness : 40 mm
• Max. Speed : 18.600 Rpm

Technical Spec

• Netto Weight0.102 KG
• Unit Demension80 X 32 X 32 MM
• Height Dimension 10.000
• Length Dimension 32.000
• Width Dimension 10.000
• Type Cylindrical
• Dimension uom 32.000
