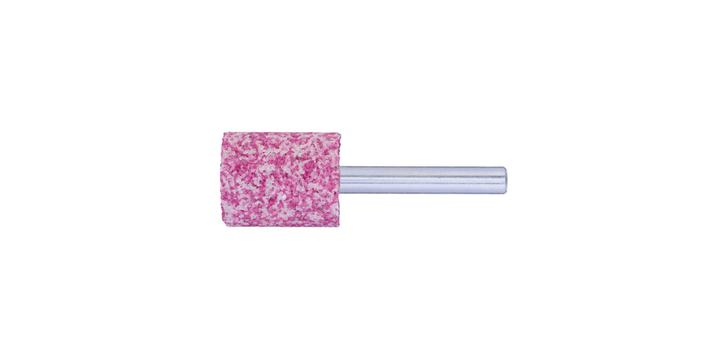

PFERD Mounted Point ZY1632/6 ADW60M5V 096604

Benefits

• The mix of easy to break down, white aluminium oxide and tough dark red aluminium oxide is perfect for general use on surfaces and edges of steel materials and is characterised by high abrasion and stock removal rates.
• This high stock removal rate reduces grinding time and labour costs.

Features

• Mounted points in hardness grade M are manufactured from a mix of dark red and white aluminium oxide in a vitrified bond.
• This grit combination leads to a good balance between stock removal rate and tool life.
• The hardness grade M is the most universallyused bond for work on steel and cast steel.
• Application Examples :
• Grindin g of high-speed steel (HSS) components.
• Weld dressing on steel structures.

Specifications

• Grit size : 60
• Shank diameter : 6 mm
• Shank length : 40 mm
• Burrs Diameter : 16 mm
• Burrs Thickness : 32 mm
• Max. Speed : 51.200 Rpm

Technical Spec

• Netto Weight: 0.029 KG
• Unit Demension: 72 X 16 X 16 MM
• Height Demension: 16.000
• Length Demension: 72.000
• Width Demension: 16.000
• Type: Cylindrical
• Dimension uom: 72.000
