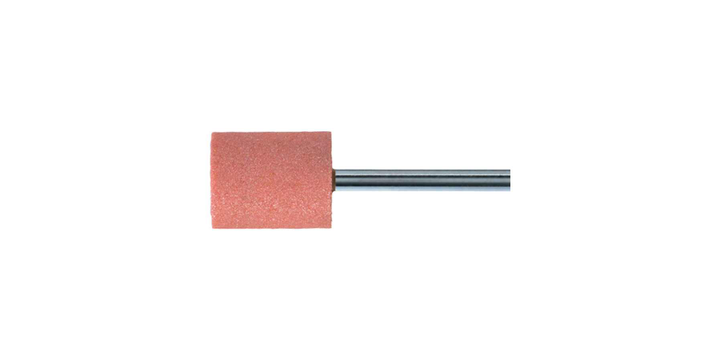

Pferd Mounted Point WR2025/6 AR60O5V 100950
Benefits
· These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
· Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.
Features
· Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
· Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
· The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
· Application examples :
· Deburring of steel castings.
· Chamfering in preparation for welding.
· Contour a nd edge grinding on forgings.
Specifications
· Grit size : 60
· Shank diameter : 6 mm
· Shank length : 40 mm
· Burrs Diameter : 20 mm
· Burrs Thickness : 25 mm
· Max. Speed : 47.700 Rpm
Technical Spec
- Netto Weight : 0.033 KG
- Unit Demension : 65 X 20 X 20 MM
- Height Demension : 20.000
- Length Demension : 65.000
- Width Demension : 20.000
- Type : Cylindrical With Radius
- Dimension uom : 65.000
