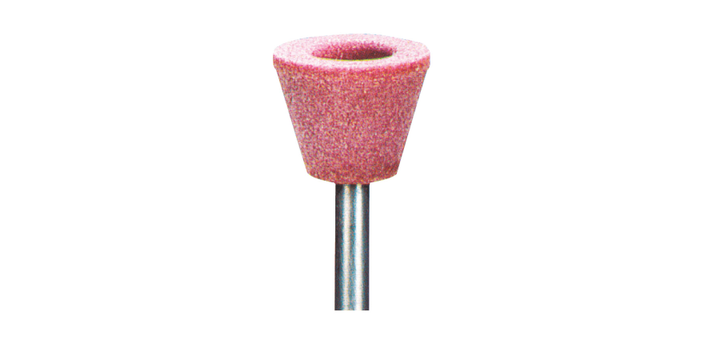

Pferd Mounted Point TO3225/6 AR46O5V 103180

Mounted Point TO3225/6 AR46O5V 103180

Benefits

• These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
• Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.

Features

• Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
• Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
• The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
• Application examples :
• Deburring of steel castings.
• Chamfering in preparation for welding.
• Contour a nd edge grinding on forgings.

Specifications

• Grit size : 46
• Shank diameter : 6 mm
• Shank length : 40 mm
• Burrs Diameter : 32 mm
• Burrs Thickness : 25 mm
• Max. Speed : 29.800 Rpm

Technical Spec

• Netto Weight 0.025 KG
• Unit Dimension 65 X 32 X 32 MM
• Height Dimension 32.000
• Length Dimension 65.000
• Width Dimension 32.000
• Type Cup
• Dimension uom 65.000
