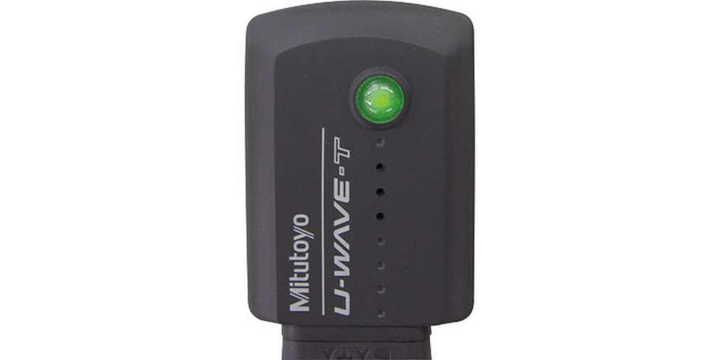

MITUTOYO U-WAVE-T/BUZZER Type 02AZD880G

• U-WAVE-T units transmit data from measuring tools to U-WAVE-R
• U-WAVE-R loads data received from U-WAVE-T onto a PC software package via a USB port
• Measurement data can be entered into a software package
• The buzzer type notifies the normal reception of data by LED and buzzer sound
• The water/dust-proof IP67 type is designed for a harsh environment and as such is only equipped with LED notification of data reception
• 400,000 data transmissions with one battery

Specifications:

• Transmission Output : 4 dBm (2.5 mW) or below
• Data Reception Indication : Buzzer and LED (green, red, orange)
• Communication : Wireless communication protocol, Proprietary (2,4 GHz by original specification based on IEEE 802.15.4), Communication distance/speed, Approximately 65.6' (20 m) (within visible range) 250 kbps, Communication frequency, 2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval),, Communication with measuring tool, Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
• Modulation Method : DS-SS (Direct Sequence Spread Spectrum)
• Dimensions : 1.73 x 1.17 x 0.73" (44 x 29.6 x 18.5 mm)
• Weight : 0.05 lbs (23 g)
