Mitutoyo Setting Ring 0.7IN 177-183
Product Description

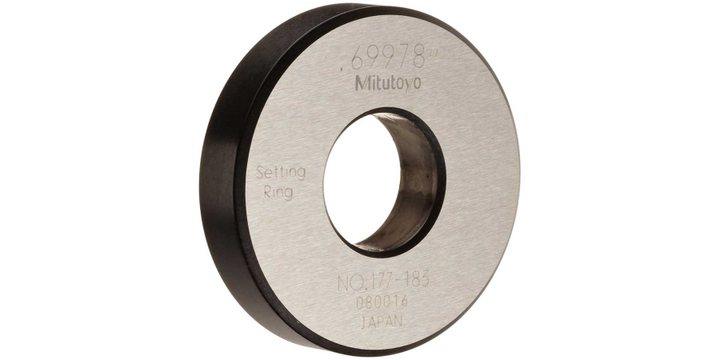

MITUTOYO Setting Ring 0.7IN 177-183
Benefits
- Used for quick and accurate setting of dial bore gages, Holtest, and inside micrometers.
Features
- Setting inside of unit measurement
Specifications
- Nominal size diameter (Inside diameter) : 0.7 INC
- Outside Diameter : 45 MM
- Thickness : 10 MM
- Type : A
- Toleranc e between the nominal size and the actual diameter : +/- 0.0004 INC
- Uncertainty of marked diameter value : +/- 0.00006 INC
- Roundness/Cylindricity : 0.00004 INC
- Distance from the side face H : 1.8 MM
- Size of warranted calibration surface K : 6.4 MM
Technical Spec
- Netto Weight: 0.013 KG
- Unit Demension: 54 X 53 X 21 MM
- Height Demension: 21.000
- Length Demension: 54.000
- Width Demension: 53.000
- Material: Steel
- Type: Ring Gage
- Dimension uom: 54.000
S$ 174.41
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
/ EA
