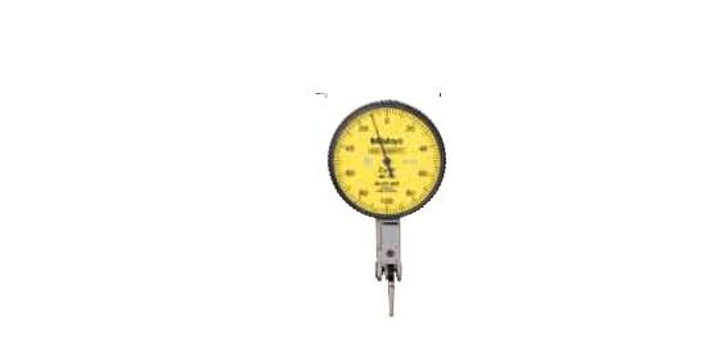

Mitutoyo Dialtest INDICATOR0.02/.002MM513-405-10H
Mitutoyo Dialtest INDICATOR0.02/.002MM513-405-10H
Brand: | MITUTOYO |
Model: | 0.02/.002MM513-405-10H |
Product Description
MITUTOYO Dialtest INDICATOR0.02/.002MM513-405-10H
DIALTEST INDICATOR0.02/.002MM513-405-10H
Benefits
- Performs easy and accurate measurement of narrow of recessed areas, plus inside and outside diameters that dial indicators cannot access
- No clutch structure for automatic reversal of measuring direction
Features
- One piece bezel and crystal design with O ring provide resistance to water and dust
- The glare free flat crystal face has a scratch resistant coating
- High sensitivity and quick response because of jeweled bearings
- Standard carbide contact point provide
Specifications
- Type : Horizontal Type, Basic Set
- Graduation : 0.002mm
- Range : 0.2mm
- Dial Reading : 0-100-0
- Measuring Forces : 0.3N or less
- Accuracy : 3um
Technical Spec
- Netto Weight 0.036 KG
- Height Dimension 0.045
- Length Dimension 8.800
- Width Dimension 3.600
- Type DIAL TEST INDICATOR
- Dimension uom 8.800
S$ 172.36
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
