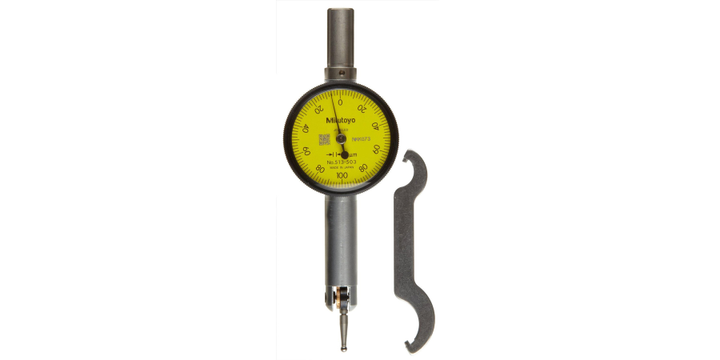

Mitutoyo Dialtest Indicator 0.2/0.002MM 513-503E
Mitutoyo Dialtest Indicator 0.2/0.002MM 513-503E
Brand: | MITUTOYO |
Model: | 0.2/0.002MM 513-503E |
Product Description
MITUTOYO Dialtest Indicator 0.2/0.002MM 513-503E
DIALTEST INDICATOR 0.2/0.002MM 513-503E
Features
- Series 513 dial test indicator with reversible measuring direction and adjustable contact point, for measuring surface variations in narrow or recessed areas
- Units displayed in fractional millimeters (mm), and has a rotating bezel and limit markers
- Pocket-type indicator with horizontal face parallel to the axis and three dovetail mounts fo r mounting horizontally or vertically from the front, top, or back of th e indicator
- Jeweled bearings provide high sensitivity and accuracy , reversible measuring direction, and a 220-degree adjustable contact point
- Meets Japanese Industrial Standard (JIS) B7533-1990
Specifications
- Range: 0.2 mm
- Graduation: 0.002 mm
- Accuracy: +/- 0.003 mm
- Dial reading: 0-100-0
- Measuring force: 0.3N or less
Technical Spec
- Netto Weight 0.041 KG
- Unit Dimension 135 X 85 X 35 MM
- Height Dimension 3.500
- Length Dimension 13.500
- Width Dimension 8.500
- Material Stainless Steel
- Type Pocket Type
- Dimension uom 13.500
S$ 226.80
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
