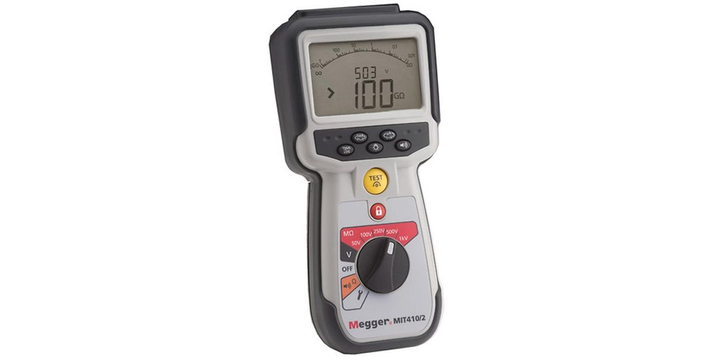

Megger Insulation Tester MIT410/2

Leadtime 6-10 weeks

Insulation Resistance Testing
The stabilized insulation test voltage for the MIT410/2 is accurate to +2% -0%. This compares to the industry standard +20%, providing a more accurate test voltage without the risk of over-voltage damage to circuits or components. The output voltage is maintained between 0 and 2% throughout the test range.

Features:

Ideal for electrical and industrial testing

Performs insulation testing up to 1000 V and 200 Gigaohms range

Includes Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions

Carries out fast continuity testing with single range from 0.01 ohms to 1 Megaohm

Stabilized insulation test voltage allows for higher accuracy

Indicates PASS or FAIL depending on threshold voltage

Automatically performs tests to a time limit with timed testing function

Measures frequency between 15 Hz and 400 Hz

Measures voltage up to 600 V TRMS AC and 600 V DC

Display combines analog arc with dual digital readout

Detects live voltages and inhibits insulation testing above user-selected thresholds

Suitable for use on CAT IV applications and supply voltages to 600 V

Tough, ABS housing absorbs shocks and provides excellent grip

Weatherproof case rated to IP54

What's In The Box:

(1) MIT410/2 Insulation Tester (1006-732)
(1) Red/Black Silicone Test Leads with Probes and Clips (1002-001)
(1) SP5 Remote Switch Probe (1007-157)
(1) Informational CD
(6) AA Alkaline Batteries (23415)
(1) Carrying Case (1007-886)
