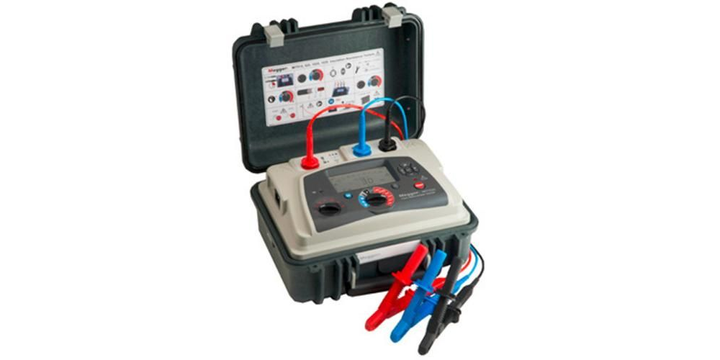

Megger Insulation Tester MIT1525
Brand:
MEGGER
Model:
MIT1525
Product Description

Megger Insulation Tester MIT1525

Leadtime 6-10 weeks


Diagnostic Insulation Resistance Tester

Li-ion battery

Large LCD display with backlight

AC Voltage : 90-264 V rms, 47- 63 Hz 200 VA

Battery charge time : 2.5 hours deep discharge, 2 hours normal discharge

Test Voltage : 1000 V, 2500 V, 5000 V, 10000 V, 15000 V, User defined test voltage.

User defined test voltage : 50 V to 1 kV in 10 V steps, 1 kV to 5 kV in 25 V steps, 5 kV to 15 kV in 25 V steps

Test voltage accuracy : +4%, -0%, ±10 V nominal test voltage at 1 GΩ load (0°C to 30°C

Resistance range : 10 kΩ to 15 TΩ @ 5 kV, 10 kΩ to 20 TΩ @ 10 kV, 10 kΩ to 30 TΩ @ 15 kV

Short circuit / charge current : 3 mA @ 5 kV, 10 kV, 15 kV

Insulation test alarm: 100 kΩ to 10 GΩ

Capacitor charge : <7.5 s/μF at 3 mA to 15 kV

Capacitor discharge : <3500 ms/μF to discharge from 15 kV to 50 V

Capacitor range : 10 nF to 50 μF

Capacitance measurement accuracy : ±10% ±5 nF

Current range : 0.01 nA to 6 mA

Current accuracy : ±5% ±0.2 nA at all voltages (20 °C)

Fitur

Measures capacitance of test object (with test voltages over 5000 V)

IR, Timed IR, DAR, PI, DD, SV and Ramp diagnostic tests

High current – 3 mA short circuit current

Dedicated voltmeter function (30 V to 660 V)

Advanced memory, on screen recall and real time clock for date / time stamped results

Download of on-board results via USB interface

Recorded temperature (measured by independent instruments) can be saved with test result

PowerDB Lite asset management software

Safety rated at CAT IV 600 V (maintained to 3000 m altitude)

S$ 12,096.51
Lead time of 40 working days required.
Item will be ready to dispatch within the lead time specified.
