Megger Clamp Meters DCM340

Leadtime 4-8 weeks

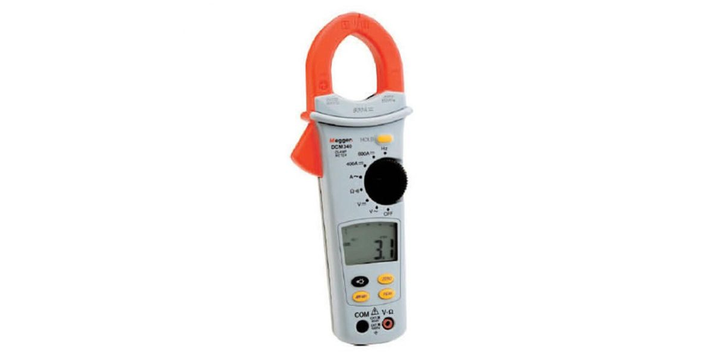

The Megger DCM340 Digital Clamp meter is a highly versatile instrument and ideal for use in the installation, maintenance, monitoring or checking of AC or DC electrical systems and equipment.

There are four instruments in the DCM series of clampmeters, including the 400A AC current-only DCM310; the DCM320 which includes voltage and resistance measurement; the DCM330 Fork-Multimeter, which is an open fixed jaw design; and this, the DCM340. Capable of measuring AC and DC current up to 600A; AC and DC voltage up to 600V; resistance up to 400Ω; and frequency up to 400Hz, the DCM340 is the most versatile in the range.

Current measurement combined with the comprehensive and accurate multimeter functions of the DCM340 eliminate the need to carry around both a clampmeter and multimeter – this instrument does it all.

The large clear digits of the numeric display are complemented by the high-resolution digital bar graph, useful for indicating trending and fluctuation of measurement. The backlight assists use in poorly lit areas such as distribution cupboards and corners of switchrooms; and the data-hold feature enables use on difficult access cables where otherwise the display may be impossible to see.

Min/Max hold provides the ability to store the maximum and minimum DC or RMS values over a period of time. While storage is taking place, either the present, maximum or minimum value can be displayed. Peak hold stores the maximum and minimum peak value of an AC signal at a 10ms sample rate. The auto-off feature automatically places the meter in power-save mode after 30 minutes from power-on, but this can be disabled if required for min/max measurements.

Using the Relative mode (REL), a stable value can be stored, the instrument zeroed at that point, and then any variation from that value is displayed as a direct measurement relative to it.

The DCM340 is safety rated to IEC 61010-1 Cat III 600 V, and is drop-tested to 1.2m onto a hard floor. It is supplied with test leads and a carry case, and a full 1-year manufacturer's warranty.

The DCM340 is designed to be used on electrical systems and equipment where there is a need to measure current, volts, resistance and frequency. It is therefore intended for use while installing, maintaining, fault-finding or monitoring those systems.

The min/max and peak-hold enable maximum load currents from equipment to be identified such as start-up currents to motors and heaters.

With the added benefit of DC current measurement, it can also be used in applications including domestic power generation from solar panels and wind-turbines; battery monitoring; automotive uses for charging and load circuits; electric vehicle servicing such as fork-lift trucks; lift maintenance; UPS commissioning, servicing and maintenance; electro-plating plants and welding equipment servicing.

Features:

Measures AC and DC current up to 600 A
Carries out AC and DC voltage measurements up to 600 V
Measures resistance up to 400 ohms and frequency up to 400 Hz
Performs continuity checks
3 1/2 digit, 4000-count LCD display with backlight
High resolution digital bar graph for viewing trends
Peak, min/max and data-hold functions
Zero-offset relative mode (REL) enables comparative measurements
Safety rated to IEC 61010-1 Cat III 600 V
Applications

Installing, maintaining, fault-finding or monitoring electrical systems and equipment
Motors and heaters
Domestic power generation from solar panels and wind-turbines
Battery monitoring
Electric vehicle servicing such as fork-lift trucks
Elevator maintenance
UPS commissioning, servicing and maintenance
Electro-plating plants and welding equipment servicing
