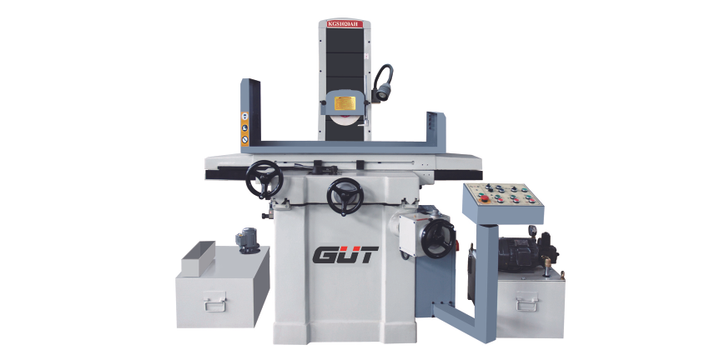

GUT Surface Grinding Machine Kgs 1020AH
Benefits
· Multinational manufacturer leading machine tools in China.
· Machine design with quality, reliability, User-friendly and safety.
· Stable quality products for Industrial machine grade
Features
· Permanent magnetic chuck
· coolant pump
· Worklight
· Wheel Flange and wheel
· balancing stand with arbor table mounted dresser
Specifications
· Working surface of table 255 x 510 mm
· Max. Tabel travel 560 mm
· Max. Cross travel 280 mm
· Distance between table surface and spindle center 520 mm
· Max table load 300 kg
· Table speed 5-25 mm/min
· Crossfeed handwheel 1 grad 0.02 mm
· Crossfeed handwheel 1 rev 5 mm
· Automatic crossfeed of saddle 0.5-12 mm
· Grinding wheel dimension 200 x 25 x 32 mm
· Spindle speed 2850 rpm
· Vertical handwheel 1 grad 0.01 mm
· Vertical handwheel 1 rev 2 mm
· Spindle motor 2.2 kW
· The spesification are subject to modification and improvement without notice
Technical Spec
- Netto Weight : 1655.000 KG
- Unit Demension : 190X150X200CM
- Height Demension : 214.000
- Length Demension : 196.000
- Width Demension : 156.000
- Type : SURFACE GRINDING
- Dimension uom : 196.000
