Gut Radial Drilling Machine Z3080X25MM
Brand: | GUT |
Model: | Z3080X25MM |
Product Description

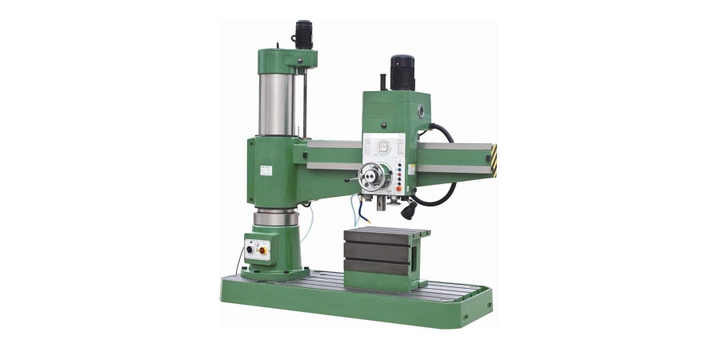

GUT Radial Drilling Machine Z3080X25MM
Benefits
- Multinational manufacturer leading machine tools in China
- Machine design with quality, reliability, User-friendly and safety
- Stable quality products for Industrial machine grade
Features
- Main part and key part are made by high strength cast and special steel material
- Head treatment made by first-class equipment,ensuring durability
- Clamping for assemblies and speed change of spindle is archived by hydraulic power
- 16 steps of spindle speed and feed
- Arm can swivel +/-180 degrees
- Mechanical andelectrical controls are centralized on the head stock , with easy andrapid operation
Specifications
- Max. Drilling Diameter : 80 mm
- Distance Between Spindle Axis & Column (Max.): 2500 mm
- Distance Between Spindle Axis & Column(Min.): 500 mm
- Distance
- Spindle Nose and Working Surface o f BasePlate (Max.) : 2000 mm
- Distance Spindle Nose and Working Surface of Base Plate (Min.) : 550 mm
- Vertical Range of Spindle Speeds : 16 – 1250rpm
- Number of Spindle Feeds : 16
- Table Size : 800 x 1000mm
- Travel of Spindle Head : 2000 mm
- Power of Main Motor : 7.5 kW
- Tidak termasuk biaya kirim dan instalasi
Technical Specifications
- Netto : 11 KG
- Height : 422.5 CM
- Length : 393 CM
- Width : 160 CM
- Type : RADIAL DRILLING MACHINE
S$ 86,553.31
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
/ EA
