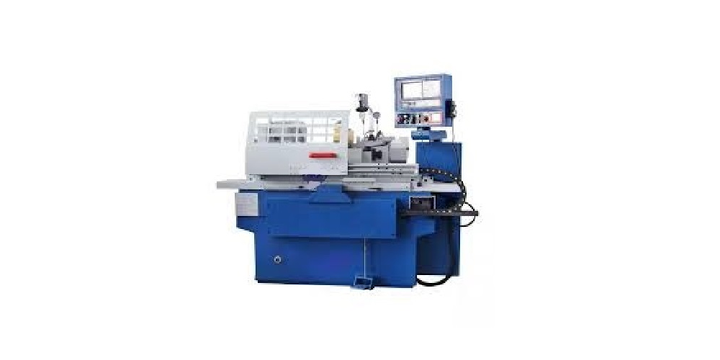

GUT Cnc Univ Cylinder Grinder MKE1420H X 500

CNC UNIV CYLINDER GRINDER MKE1420H X 500

Benefits

• Multinational manufacturer leading machine tools in China
• Machine design with quality, reliability, User-friendly and safety
• Stable quality products for Industrial machine grade

Features

• High Precision Spindle
• Rugged Construction assure rigidity
• CNC Controlled grinding machine perfect for Industry Include
• Precise Machining and Central Lubrication Include

Specifications

• Center height : 135 mm
• Distance between centers : 500 mm
• Max. Workpiece weight 50 Kg
• External grinding diameters: Dia 8 - 200 mm
• Internal grinding diameters : Dia 25-100 mm
• Max Grinding Lenght : O.D : 500 mm I.D : 125 mm
• Spindle Speed of headstock : 380 r/min
• Headstock Center : MT4
• Tailstock center : MT4
• Wheel Size (O.Dia x W x I.Dia) : Dia 400 x 50 x Dia 203 mm
• Wheel spindle speed : 1670 r/min
• Internal wheel spindle speed : 14000 r/min
• SIEMENS 808D CONTROLLER
• The spesification are subject to modification and improvement without notice

Technical Spec

• Netto Weight 3000.000 KG
• Unit dimension
• Height dimension 220.000
• Length dimension 330.000
• Width dimension 220.000
• Type CNC CYLINDRICAL GRINDING
• Lead Time 90
• Dimension uom 330.000
