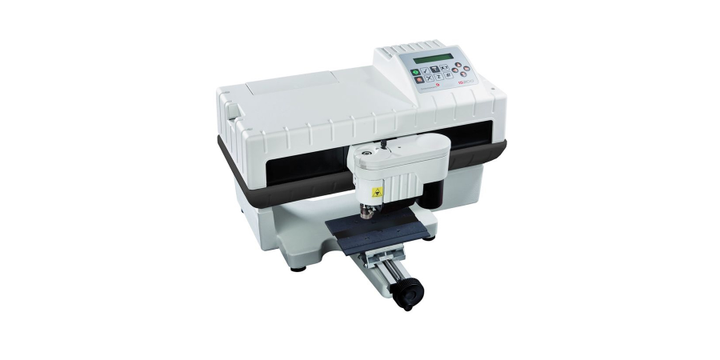

GRAVOGRAPH Engraving IS200 Iq Std Discovery 22833

ENGRAVING IS200 IQ STD DISCOVERY 22833

Benefits

• Ideal for :
• Personalization of small objects
• Badges,plaques
• Part marking
• Small industrial signage
• Nameplates
• Flat and cylindrical engraving (with IS200TX)

Features

• This small and compact engraving machine can fit easily on a desk and is great for small industrial applications.
• Add Gravograph's Gravo Style fully integrated software and reduce engraving errors by saving your job settings and previewing your work on the screen before you engrave.
• Work area is clear for easy access to the object to be engraved.
• Very quiet spindle motor with directcurrent.
• A complete range of spindles, clamping accessories and tools to suit t he evolution of applications.

Specifications

• Type : Engraving Machine
• Size : 500 x 455 x 295 MM
• Net Weight : 20 Kg
• Max. Engraving area : 225 x 80 MM
• Packaging
• Overallsize : 650 x 600 x 400 MM
• Weight (packaging + ma chine) : 23 Kg
• Standard Spindle tool
• Type : Rotating, Top-Loading
• Diameter : 4.36 MM
• Max. rotation speed : 17000 tr/min
• Spindle Displacement Speed
• Off-load Travell ing Speed : 27 MM/s
• Working Speed up to : 25 MM/s Spindle travel
• In Z direction : 15 MM

Technical Spec

• Netto Weight 20.000 KG
• Unit Dimension 500 X 455 X 295 MM
• Height Dimension 295.000
• Length Dimension 500.000
• Width Dimension 455.000
• Color 90 W
• Type Engraving Machine
• Dimension uom 500.000
