Go Tech IZOD/CHARPY Impact Tester GT-7045-HMH
Go Tech IZOD/CHARPY Impact Tester GT-7045-HMH
Brand:
GO TECH
Model:
GT-7045-HMH
Product Description

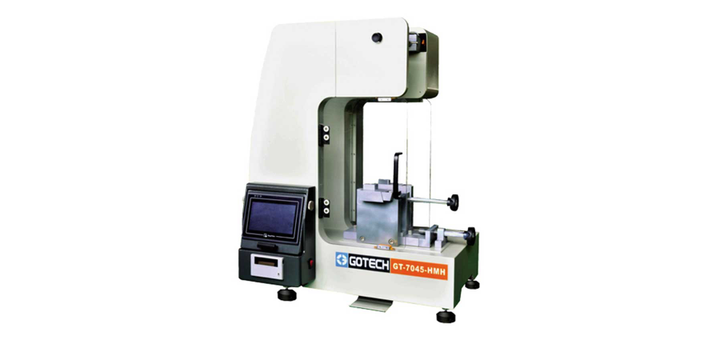

GO TECH IZOD/CHARPY Impact Tester GT-7045-HMH

IZOD/CHARPY IMPACT TESTER GT-7045-HMH

Benefits

High Quality Product

Features

  • This machine is a combination of IZOD and CHAPY, which is used for testing the absorption energy of a specimen made of plastics or rubber in such a manner that the specimen is hit by the striker at a given angle and weight. After impacting the specimen, the impact energy of the material will be calculated through the precisive decorder and the microcomputer. This machine adopts a color touch pane l, easy and convenient to operate.

Specifications

  • Type : Charpy HMI Impact Tester
  • Test Standards : ASTM-D256#ASTM-D6110#GB/T1043#GB/T1843#ISO-179#ISO-180#JIS-K7110
  • Impact Speed : 3.46 M/s
  • Energy Un it : Kg-CM , Kg-M , lb-INC , J
  • Angle Display Resolution : 0.05 Deg.
  • Energy Display Resolut ion : 0.01 J
  • Printing : By PL-16 printer
  • HMI 7 INC and 16:9 color touch screen
  • Accuracy : +/- 0.05 Deg.
  • Angle : 150 Deg.
  • Axis Height : 90 CM
  • Capacity : 1-25 J
  • Display : 7 INC
  • Distance from striking center : 40.5 CM
  • Releasing method : Manual
  • Str iker weight : 253 Kg

Technical Spec

Netto Weight 253.000 KG

Unit Dimension 50 X 81 X 90 CM

Height Dimension 90.000

Length Dimension 50.000

Width Dimension 81.000

Type Impact Tester

Lead Time 65

Dimension uom 50.000


S$ 32,265.87
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
