Feeler Vmc NBP-1300A DDS1500 Rpm W/ Fanuc 0I-MD
Feeler Vmc NBP-1300A DDS1500 Rpm W/ Fanuc 0I-MD
Brand:
FEELER
Model:
0I-MD
Product Description

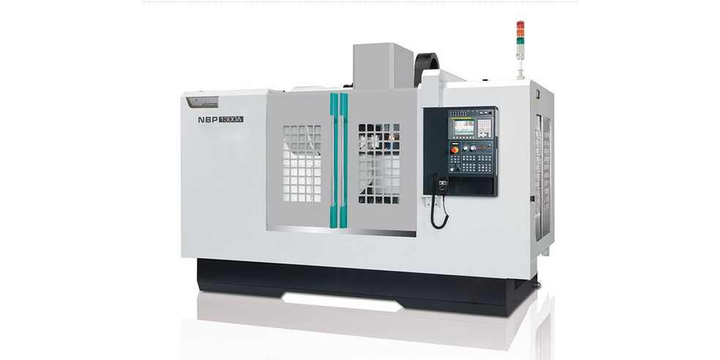

FEELER Vmc NBP-1300A DDS1500 Rpm W/ Fanuc 0I-MD

Features

  • 3-color signal light
  • 3-axis pro tensioned ballscrew
  • Automatic lubrication system
  • Belt type transmission
  • Dust-p roof electrical cabinet
  • Enclosed splash guard
  • Heat exchanger
  • Leveling bolts and plates
  • Operation and maintenance manual
  • Rigid tapping
  • RS-32 interfance
  • Spindle air blast < li> Spindle air sealing
  • Water-oil separator
  • Working light

Specifications

  • X-Axis Travel mm: 1300
  • Y-Axis Travel mm: 610
  • Z-Axis Travel mm: 600
  • Spindel Nose to Table Surface mm: 125 - 725
  • Spindel Center to Column Surface mm: 660
  • Table Surface to Floo r mm: 860
  • Table Center to Column Surface mm: 355 - 965
  • Table Dimension mm: 1,500 x 600
  • Max. Loading Weight kg: 1,300 T-Slots (W x No. x P) mm: 18 x 5 x 100
  • Spindle Speed rpm: 10,000
  • Spindel Nose: 7/24 Taper No.40
  • Spindel Diam eter mm: Dia. 70
  • Spindel Motor: 7.5 / 11 kW (15 / 18.5)
  • R apid Traverse (X - Axis) m/min: 24
  • Rapid Traverse (Y- Axis) m/min: 24
  • Rapid Traverse (Z- Axis) m/min: 24
  • No. of Tool set: 22(2 4)
  • Pull Stud: P-40T (45 deg.)
  • Max. Tool Weight kg: 8 Max. Tool Length mm: 300
  • Max. Tool Diameter mm: dia. 80
  • M ax. Tool Diameter (No Adjacent Tool) mm: dia. 150
  • Tool Changing Ti me (Tool To Tool) Carrousel Type: 7 sec / 60Hz, 7.1 sec / 50Hz
  • Tool Changing Time (Tool To Tool) Arm Type: 1.7 sec / 60Hz, 2.0 sec / 50Hz
  • Floor Space mm: 3,550 x 2,330
  • Machine Weight kg: 8,0 00
  • Max. Machine Heigth mm: 2,700
  • Power Capacity kVA: 25
  • Air Source bar: 6-8

Technical Specifications

  • Netto Weight : 8000.000 KG
  • Unit Demension : 360 X 240 X 270 CM
  • Type : Vertical Milling Machine CNC
S$ 294,110.75
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
