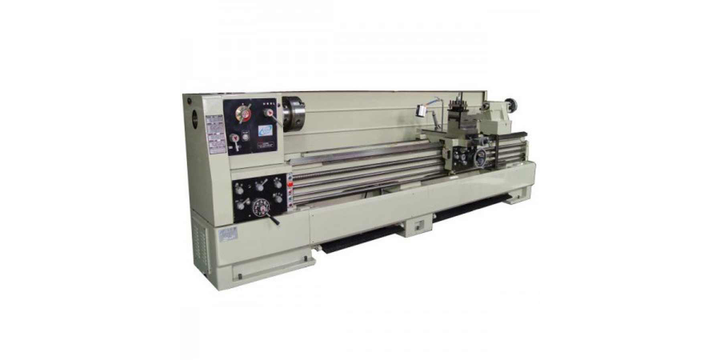

ANNNYANG Precision Lathe Machine DY-760GX3000

Features

Standard Accessories:

• Coolant pump
• Halogen work lamp
• Tailstock
• Auto lubrication system
• Toolbox with han d tools
• Manual tool post (Rotary type)
• Centers & center sle eve

Specifications

SWING:

• Distance Between Centers 3000 mm
• Swing Over Be d 760 mm
• Swing Over Cross Slide 510 mm
• Swing Over Gap 1000 mm
• Height of Center (Over Bed) 380 mm

BED :

• Width 410 mm

• HEADSTOCK
• Spindle Nose D1-8 / D1-11 (OPT.)
• Spindle Bore 104 mm / 130 mm (OPT.)
• Spindle S peed (rpm) 25 - 1250 rpm
• Number of Spindle Speed 12 Change

  FEEDS - THREAD:
• Leadscrew Dia. 45 mm. 4T.P.I. or 6 pitch
• Number of Feed Changes 36
• Longitudinal Feed Range 0.05 - 0.7 mm/rev
• Cross Feed Range 0.025 - 0.35 mm /rev
• Inch Threads 2 - 28 T.P.I
• Metric Threads P0.8 - 14 mm
• D.P No. / Range D.P 4 - 56
• Module Pitches No. / Range M OD 0.5 - 7

TOOL SLIDE:

• Cross Slide Travel 380 mm

Compound Rest Travel 255 mm

TAILSTOCK :

• Quill Trav el 180 mm
• Quill Diameter 75 mm

Taper of Center MT#5

MOTOR :

• Main Mot or 10 HP / 15 HP (OPT.)
• Rapid Feed Motor 1/4 HP
• Coolant Pump 1/8 HP

Technical Spec:

• Netto Weight: 3700.000 KG
• Unit Demension: 480 X 140 X 173 CM
• Height Demension: 173.000
• Length Demension: 480.000
• Width Demension: 140.000
• Type: Conventional Lathe
• Dimension uom: 480.000
