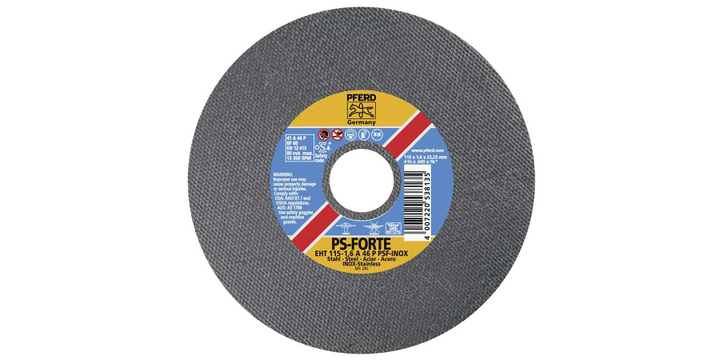

PFERD Cut Wheel EHT115-2.4A46PPSF 523025

Benefits

Medium-hard, multipurpose tool of hardness P (INOX) with high cutting performance and long tool life, for reduced heat build-up during cutting.

Features

• Wheel thicknesses 1.9/1.6/1.0 mm for fast, easy cutting with minimized burr formation
• Wheel thicknesses 2.5/2.4 mm for multipurpose cutting work
• Wheel thickness 3.2 mm for maximum tool life and high lateral stability
• Suitable for use on angle grinde rs of all output categories
• The use of large clamping flanges increases the lateral stability and ensures precise wheel guidance, in particular for thin cut-off wheels of the flat type with dia. 178 an d 230 mm

Specifications

• EN designation: 41 A 46 P BF 80
• Diameter: 115 mm
• Thickness: 2.4 mm
• Hole: 22.23 mm
• Max. perm. speed: 13300 rpm
• Application: Cutting of sheet metal, profiles and solid material
• Abrasive: Aluminium Oxide A
• Material to be wor ked: Stainless Steel (INOX)
• Wheel type: Flat

Technical Spec

• Netto Weight: 0.090 KG
• Unit Demension: 11.5 X 0.24 X 0.24 CM
• Height Demension: 0.240
• Length Demension: 11.500
• Width Demension: 0.240
• Type: PS Forte
• Content Length: 115 MM
• Dimension uom: 11.500
