Mitutoyo Dialtest Indicator .6/.002MM 513-425-10E
Mitutoyo Dialtest Indicator .6/.002MM 513-425-10E
Brand: | MITUTOYO |
Model: | 6/.002MM 513-425-10E |
Product Description

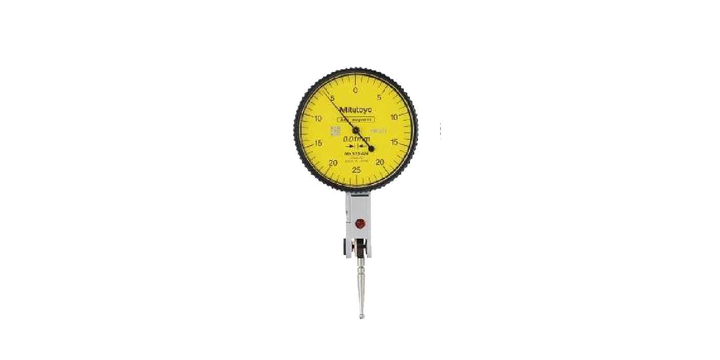

MITUTOYO Dialtest Indicator .6/.002MM 513-425-10E
DIALTEST INDICATOR .6/.002MM 513-425-10E
Benefits
Horizontal Type
Features
Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators, No-clutch structure for automatic reversal of measuring direction.Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal, The glare-free at crystal face has a scratch-resistant coating, High sensitivity and quick response due to low-friction jeweled bearings.
Specifications
- Graduation : 0.002 mm
- Dial Reading 0-100-0
- Range : 0.6 mm
- Repeability : 1um
- Measuring force : 0.4 N or less
Technical Spec
- Netto Weight 0.050 KG
- Height Dimension 4.000
- Length Dimension 13.500
- Width Dimension \ 9.000
- Type Dialtest Indicator
- Dimension uom 13.500
RM 688.86
Lead time of 14 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
/ EA
This item is sold by
ID-8304067618
