Logitran Electric Stacker 1T Self Maxi 3300
Logitran Electric Stacker 1T Self Maxi 3300
Brand:
LOGITRANS
Model:
3300
Product Description

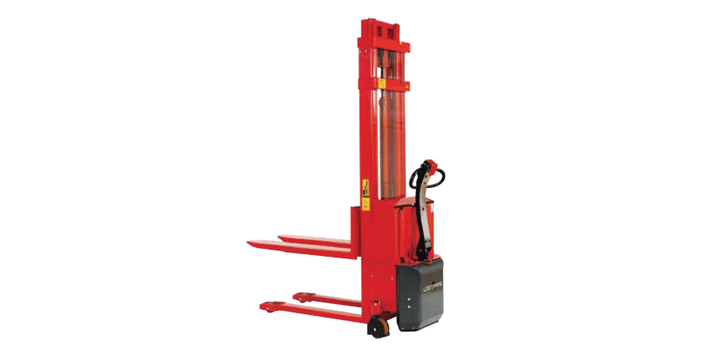

Logitran Electric Stacker 1T Self Maxi 3300

Benefits

  • High flexibility and efficiency - the fully powered Logiflex Maxi can transport, handle and lift different goods.
  • The design puts focus on the safety and ergonomic working conditions of the user - Logiflex Maxi can be adjuste d to the individual user, and the ergonomic correct handle ensures the user a relaxed hold.
  • No damage to surrounding s, pallets and goods. Logiflex Maxi has an elegant design with rounded corners.
  • High quality is ensured through an extended test programme and in cooperation with experts in Health and Safety.

Features

  • The fully powered Logiflex Maxi has optimum driving qualities and
  • manoeuvrability even in the most confined areas.
  • High performance with AC technology
  • Easy setting of e.g. driving spee d, acceleration and deceleration
  • Long operatin g time per charge
  • Strong construction ensure s a long operating life and low maintenance costs.
  • Possible to operate with the
  • handle upright. Cen tral location
  • of all control buttons.
  • Adjusta ble forks are available as
  • optional extra in many different
  • lengths and types.
  • Available with Rotator and/or
  • optional extras, e.g. crane arm,
  • drum turner, remote control, level
  • c ontrol, built-in charger.

Specifications

  • Capacity in kg : 1000
  • Lifting height with wrap-over forks h3 : 3300
  • Fork length l : 600, 800, 1150, 1520
  • Overall height h1 : 2240
  • Overall width b1 : 890
  • Fork span b5 : 560, 680
  • Le ngth without forks l2 : 605
  • Overall length with 1150 forks l1 : 1765
  • Overall height h4 : 3740
  • Lowered height, forks h13 : 90
  • Load centre c : l/2
  • Fork width e : 163
  • Run-in length lx : 1040 with 1150 forks
  • Free lift h2 : 190
  • Turning a ngle of the wheels : 210 Deg.
  • Motor : 1,2 kW 24 V speed control e lectronically variable
  • Driving speed with/without load : Below 500 mm lift: 5/6 km/h, over 500 mm lift: 3/4 km/h
  • Pump motor : 1,2 k W 24 V
  • Lifting speed with/without load : Cap. 1000 kg: 0,07/0,12 m/s, cap. 1200 kg: 0,04/0,07 m/s
  • Lowering speed with/w ithout load : 0,12/0,08 m/s
  • Weight in kg (no battery): 468

Technical Specifications

  • Netto : 371 KG
  • Height : 224 CM
  • Length : 150 CM
  • Width : 93.2 CM
  • Type : Self Maxi
RM 53,777.04
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
