Fischer Dualscope MP0R-FP 605-114
Product Description

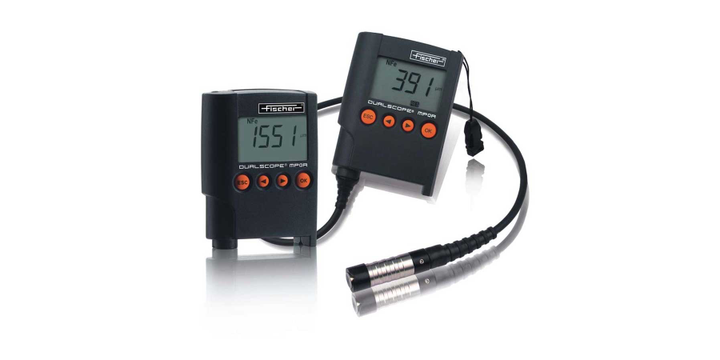

FISCHER Dualscope MP0R-FP 605-114
Benefits
- Pocket Instruments with PC-Interface for Convenient and Fast Coating Thickness Measurement on Virtually all Metals
- Ideal for on site applications due to the compact size, the light weight and the robust and durable instrumen t design
Features
- Probe with cable (80 CM; 31.5 INC)
- Simple SPC
- Measuring rang e : Fe/ NFe : 0-2000 Micrometer
- PC Interface using USB Port 2.0
- Factory calibrated at several reference points with Corrective calibration
- Different languages are selectable
- Patented conductivity compensation for measurem ents on non-magnetic substrate materials
- App licable for measurements both on smooth and rough surfaces
- PC software included in delivery scope
Specifications
- Probe with cable (80 CM; 31.5 INC) permanently connected to the instrument, for measurements on various specimen shapes
- Statistic display of mean value, standard deviation, MIN, MAX and number of measurements per block
- Selectable unit of measure : Micrometer or mils/thou
- Measuring Method : Magnetic induction method and Eddy current method
- P robe tip radius: 2 MM
- Measuring range : Fe/NF e : 0-2000 Micrometer
- Data memory : Max. 10, 000 individual reading
- Measuring frequency : More than 70 measurements per minute
- Graphi c display with an automatically turning display in order to read t he measurement results in many different instrument positions
- USB Port 2.0
- Ambi ent temperature operation 0-40 Deg. C
- W eight : 184 Gr (Include Batteries)
- Dimension : 64 x 28 x 85 MM
- PowerSupply : 1,5V AA Batte ries
- Standard : ISO 2178,ASTM D7091
- Resolution 0-50 Micrometer: less than 0. 25 Micrometer
- Resolution 50-2000 M icrometer : less than 0.5 % of reading
- Accu racy : 0-75Micrometer : less than 1.5 Micrometer
- Accuracy 75-1000 Micrometer : less than 2 % of reading
- Accuracy 1000 - 2000 Micrometer : le ss than 3 % of reading"
Technical Spec
- Netto Weight:0.190 KG
- Unit Demension”: 28 X 64 X 85 MM
- Height Demension: 85.000
- Length Demension: 28.000
- Width Demension: 64.000
- Type: Dualscope
- Dimension uom: 28.000
- Resolution: 0.50%
RM 12,616.25
Lead time of 90 working days required.
