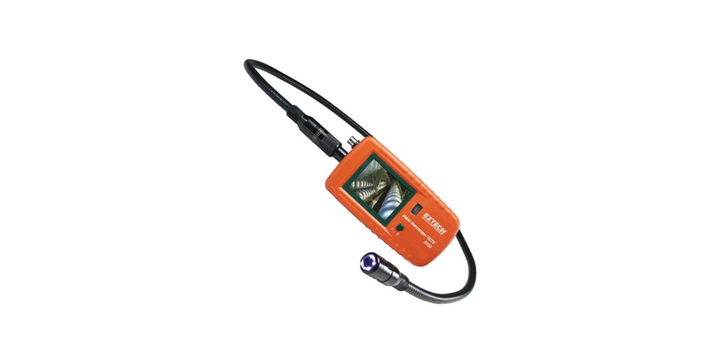

EXTECH Video BORESCOPE/CAMERA Tester BR50

VIDEO BORESCOPE/CAMERA TESTER BR50

Benefits

• Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location
• HVAC: Inspect inside ducts, behind motors and compressors
• Automotive : View inside or around engines and transmissions
• Government : Safety an d security inspections
• Industrial : Inspect weld integrity, process equipment, gears, molding machines
• Aerospace : Aircraft inspections for contamination, debris, cracks or other damage

Features

• 17 MM diameter camera head with 39 INC (1 M) flexible goose neck cable retains configured shape
• Four LED lamps with five brightness levels illuminate the viewed object
• Glare-free close-up field of view with 48 0 x 234 pixel display
• Automatically detects NTSC and PAL cameras
• Complete with rechargeable Lithiu m battery, and Universal AC adapter / charger with USB cable

Specifications

• Type : Videoscope Camera
• Transmission Range : 1 M
• Camera Diameter : 17 MM
• Camera Pixel : 480 x 234 VGA
• Camera Viewing Distance : 10 M
• Display Size : 2.4 INC
• Duration : Set by User
• Optional Accessories : BRC-EXT - Extension Cable
• Transmission Range : 1 M
• Camera Diameter : 17 MM diameter camera head
• Cable length : 39 INC (1 M) flexible goose neck cable
• Pixel : 480 x 234 pixel display
• Connector : 19 MM diameter connector
• Cable length : 37.5 IN C (0.95 M) cable length (including connectors), maximum 2 extension
• Cables can be connected to the borescope
• Power : Complete with rechargeable Lithium batt ery, and Universal AC adapter/charger with USB cable

Technical Spec

• Netto Weight 0.910 KG
• Unit Dimension 17.2 X 6.6 X 3 CM
• Height Dimension 3.000
• Length Dimension 17.200
• Width Dimension 6.600
• Type Videoscope Camera
• Dimension uom 17.200
