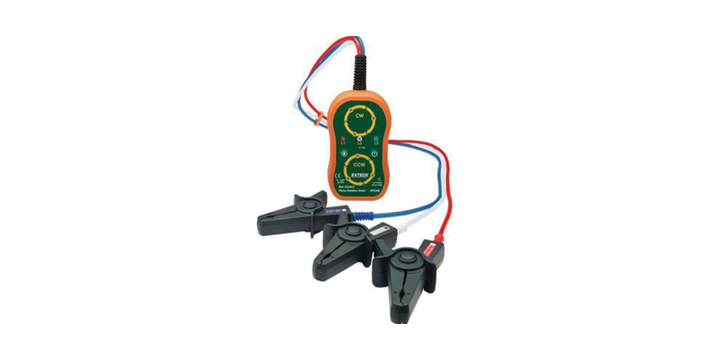

Extech Phase Rotation Tester PRT200

Phase Rotation Tester PRT200

Benefits

• High Quality Tester Machine

Features

• 75 to 1000 VAC input voltage with 45 to 65 Hz frequency range
• LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
• Beeper sounds intermittently when cor re ct phase is detected and continuously if phase is reversed
• Durable housing with back cover magnet for attachm ent to an ACdistribution panel for easy measurement
• Adjustable Hi/Low LED brightness switch for makin g measurements in dimly lit areas or sunlight
• Fully insulated alligator clips with wide jaws

Specifications

• Display : LED Indicator phase orientation
• Alarm : Beeper sound
• Input Voltage : 75 to 1000 VAC
• Frequecy : 45 to 65 KHz
• Dimension : 4.7 x 2.7 x 1.5 INC (118 x 69 x 38 MM)
• Weight : 13 oz (370 Gr)
• Battery : 4 x AA batteries
• Type : Power Analyzer
• Voltage Phase : 3 Ph
• Ac Current : 10,20 A
• Ac Earth Voltage : 75-1000 V
• Data Logger : Indicate Phase Orientation
• Frequency : 45 to 65 KHz

Technical Spec

• Netto Weight 0.370 KG
• Unit Dimension 11.8 X 6.9 X 3.8 CM
• Height Dimension 3.800
• Length Dimension 11.800
• Width Dimension 6.900
• Type Power Analyzer
• Lead Time 30
• Dimension uom 11.800
