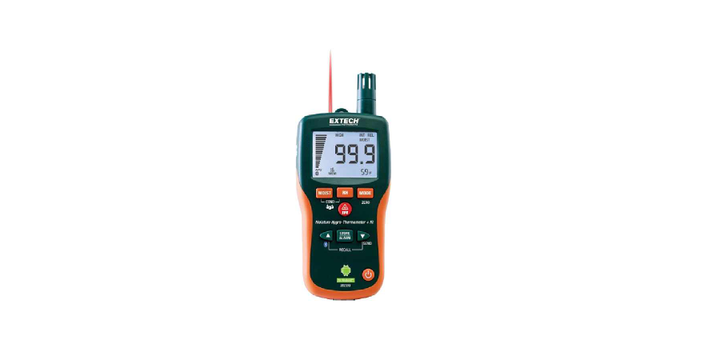

Extech Moisture HYGRO-THERMO for Android MO300

Moisture HYGRO-THERMO for Android MO300

Benefits

• The MO300 is a pinless moisture meter with Bluetooth. This meter transmits key environmental readings to Android mobile devices. The MO300 measures moisture, humidity, temperature, vapor pressure and dew point. Quickly indicates the moisture content of multiple wood types and other building materials with pinless technology without damaging the surface; remote pin-type probe allows for contact moisture readings. The MO300 features manual storing/recall (20 labeled readings) or datalog (50K readings) using the Android app, large dual display with automatic backlight and fast analog bargraph, programmable high/low moisture/humidity alarms, IR circuit to measure non-contact surface temperature, automatic calculation of differential temperature, min/max modes, data hold, and auto power off functions. Product is complete with pin moisture probe (MO290-P) and 3ft cable, 9V battery, user's manual and pouch.

Features

• Integrated Bluetooth connects with Android devices to transmit readings for remote viewing
• Works with free Android App to display large, easy-to-read values for: Moisture, Humidity, Temperature, Grains Per Pound (GPP)/(g/kg), Dew Point, Vapor Pressure, and condensation point, up to 30 inch (10m) away
• Quickly indicates the moisture content of multiple wood types and other building materials with Pinless technology without damaging the surface; Remote Pin-type probe allows for contact moisture readings
• Manually store/recall up to 20 labeled readings or datalog up to 50K readings using the Android app
• Easy to read, large dual display with automatic backlight feature and Fast Analog Bargraph
• Pinless moisture measurement depth to 0.75 inch (19mm) below the surface
• Programmable high/low Moisture/Humidity alarms
• Designed with an IR circuit to measure non-contact surface temperature
• Automatic calculation of differential Temperature (IR - DP) to determine condensation point
• Min/Max, Data Hold, and Auto power off
• Complete with pin moisture probe (MO290-P) with 3ft/0.9m cable, 9V battery and pouch case

Specifications

• Memory Manually Store/Recall 20 data readings
• Pinless Moisture (Non-Penetrating) 0 to 99.9 (Relative), Depth up to 0.75 inch (19mm)
• Pin type Moisture (probe included) 0 to 99.9%
• Max Resolution 0.1, 0.1DegF/DegC
• Humidity 0 to 100%RH
• Temperature (Air) -20 to 170DegF (-29 to 77DegC)
• Temperature (IR) -4 to 392DegF (-20 to 200DegC)
• Vapor Pressure 0 to 20.0kPA
• Dew Point -22 to 199DegF (-30 to 100DegC)
• Mixing ratio 0 to 999GPP (0 to 160g/kg)
• Field of View 8:1 Distance to Target ratio
• Emissivity 0.95 fixed

Technical Spec

• Netto Weight 0.300 KG
• Height Dimension 4.000
• Length Dimension 17.000
• Width Dimension 7.000
• Type Hygrometers
• Lead Time 60
• Dimension uom 17.000
