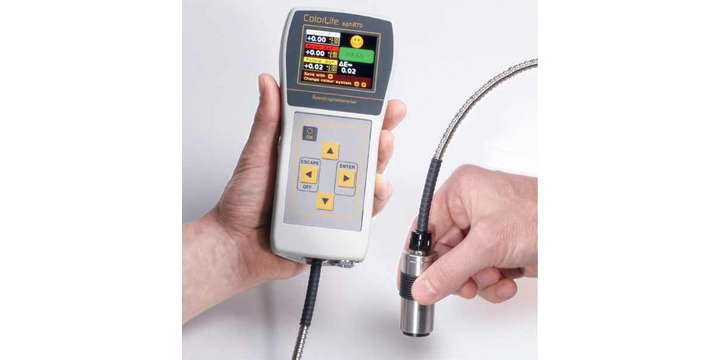

MEASURING PRODUCT Spectrophotometer Colorlite SPH870

Benefits

• Flexible external probe head and a small spot size (3.5 mm Dia) for reliable scans on curved surfaces and small samples
• A comprehensive range of accessories and probe head adapters enables the use for a wide range of applications
• Two main geometries (45 Deg /0 Deg and d/8 Deg) avaliable in one device, with the optional accessory MA35-UK
• The automatic accessory detection changes internal settings depending on what accessory is attached
• Very easy 4-button operation and high resolution graphic display
• High quality, Made in Germany

Features

• Easy to use
• Extremely flexible
• Long life LED light source
• High quality: Made in Germany

Specifications

• Measuring geometry : 45 deg/0 deg according to DIN 5033, optional d/8 degwith MA 35-UK adapter
• Illuminants : D65, D55, D50, A, C, F11
• Standard Observer : 2 deg and 10 deg
• Colour Scales : XYZ, Yxy, E CIE L*a*b*, L* u* v*, L*C*h, Hunter Lab, pass/fail
• Spectral Range : 400 nm to 700 nm, scanning in 3.5 nm steps
• Display : High resolution TFT display, high contrast and low-power
• Repeatability : < 0.05 E CIELab
• Light Source : White and blue LED‘s, extremely long life span
• ScanningTime : complete measurement cycle 0.5 sec Power Supply : rechargable battery NiMH 6-Volt/1,100 mAh – 15 hours use
• Calibration : white standard certified by the Federal Institute for Materials Research (Bundesanstalt für Materialforschung–BAM)
• User-Mode : limited user rights – password protected
• Memory : 1000 standard colours, 1000 colour values and 300 spectra (400-700nm / 3.5nm steps)
• PC-Interface : U SB 2.0, Bluetooth(optional), RS232 (optional)
• Norms and standards ASTM D 2244
• Condition temperature : 15 deg C to 45 deg C,
• humidity: max. 85% non-condensing
• Weight : 600 g, (include battery pack)
• For the measurement of inhomogeneous samples, transparent, translucent and opaque liquids, powders in cuvettes or tablet form and more.
