Switches
Micro Switches
View Table
Microswitch Actuator
Roller Plunger
Spring Plunger
Short Hinge Lever
Cross Roller Plunger
Roller Plunger
Spring Plunger
Contact Configuration
SPDT
DPST-NO
DPST-NC
SPST-NO
SPDT
DPST-NO
Contact Voltage Nom
5 V DC
30 V DC
125 V AC
250 V AC
5 V DC
30 V DC
Contact Current Max
2 A
5 A
300 mA
15 A
2 A
5 A
Max Operating Force
3.43 N
7.85 N
2.75 N
2.94 N
3.43 N
7.85 N

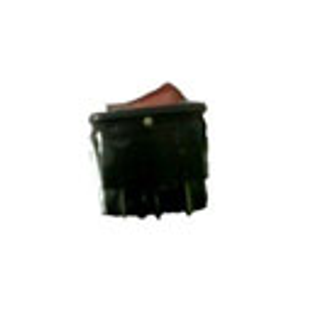

Rocker Switch
View Table
Contact Configuration
SPST-NO
DPST-NO
DPDT
DPST
SPST-NO
DPST-NO
Switch Operation
Latching
Momentary
On-(Off)
On-On
Latching
Momentary
Series Name
R13 Series
R13
Multicomp Pro Rocker Switches
3MS1 Series
R13 Series
R13
Contact Voltage
20 V DC
20 V DC AC / 20 V DC
120 V DC AC / 28 V DC
250 V
20 V DC
20 V DC AC / 20 V DC
Contact Current Max
2A
5A
3A
8A
2A
5A
Tactile Switches
View Table
Length
6.2 mm
6 mm
12 mm
8.2 mm
6.2 mm
6 mm
Height
3.8 mm
5 mm
4.8 mm
3.85 mm
3.8 mm
5 mm
Contact Rating
50mA at 32VDC
20mA at 15VDC
50mA at 12VDC
50mA at 24VDC
50mA at 32VDC
20mA at 15VDC
Operating Force
1.57 N
130 gf
13 N
500 gf
1.57 N
130 gf
Switch Dimensions
6.4 mm x 6.55 mm
6.6 mm x 6 mm
6 mm x 3.5 mm
4.7 mm x 3.5 mm
6.4 mm x 6.55 mm
6.6 mm x 6 mm
